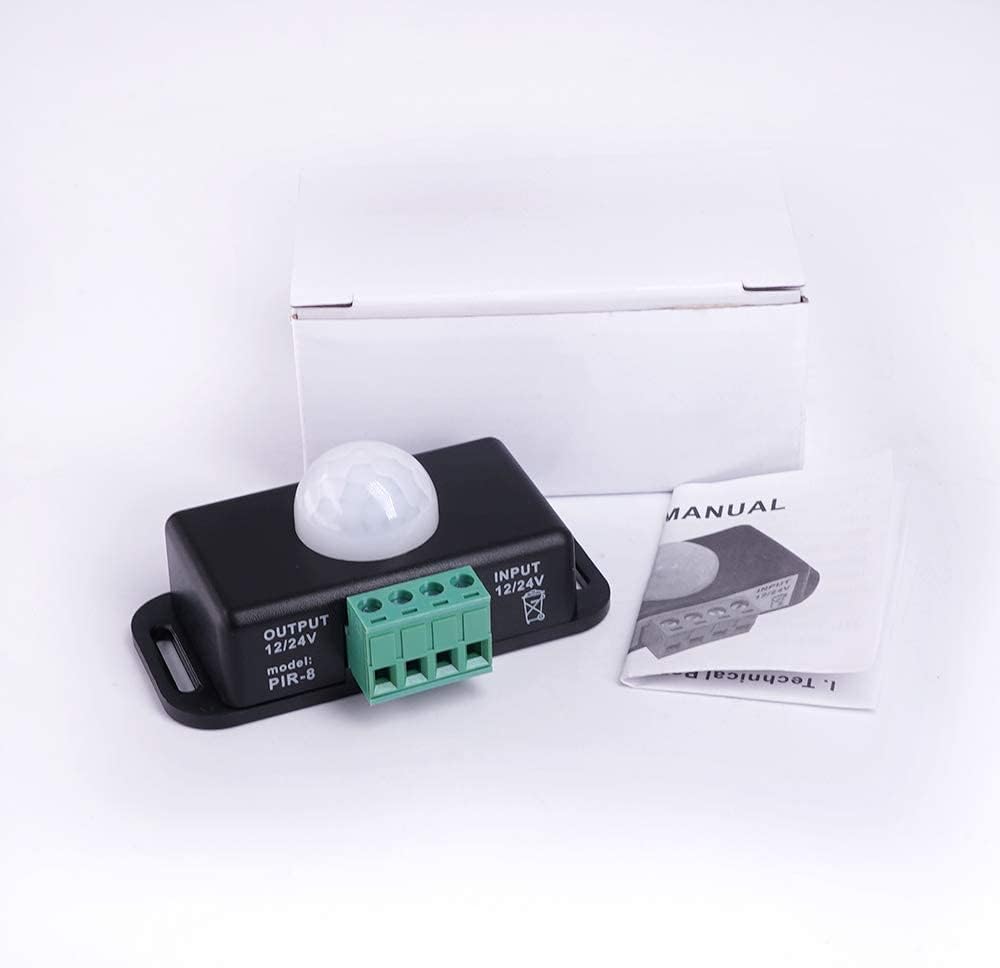

zalati PIR Motion Sensor 12V/24V Infrared LED Dimmer Switch Motion Function Automatic Controller for LED Strips Lights – Black

Description:
Feature:
Material:plastic and metal
Type:Pir Switch.
Easy to install and simple to use.
Adjust the light soft and stable, no flickering.
Mainly use to control LED light lamps and LED Strip.
You can conveniently to let the light auto on/off .The switch can detect human body’s infrared , and use infrared to control the load.
Applications:Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads.
Technical parameters:
Induction distance 5 ~ 8 M
Induction angle 120 degrees
Working temperature -20-60 ℃
Input 12-24V
Output current 6A
Static power consumption <1W
Output power 12V: <96W, 24V: <192 W
Delay Time 60-120 ms
Package:
1pcs* zalati Automatic Infrared PIR Motion Sensor Switch

Power supply voltage:12-24V; Current: 6A; . Induction distance: 5 ~ 8M.
The field of view of the PIR Dome Lens is 60 degrees nominal.
1-10 min adjustable. Set time for load turn-off delay with the knob on the back of the switch.
Infrared detection controller, adopt infrared detection way to control load switch
PIR (Passive Infrared) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet.
